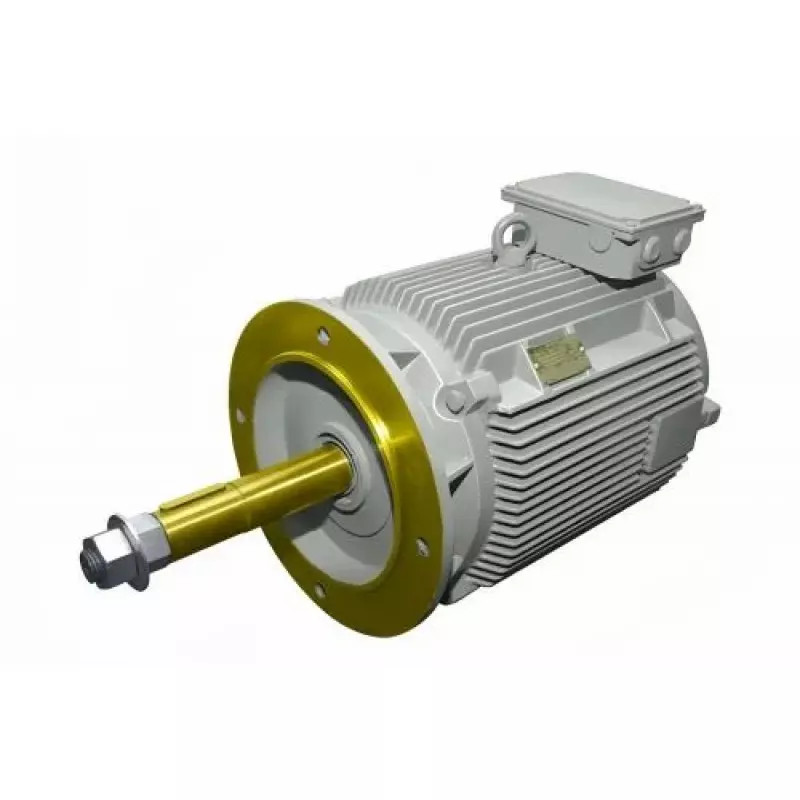

Cooling Tower Motors

AvailabilityIn Stock
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Cooling Tower Motors Details

Speed (Rpm)1500, 960, 720
ShaftSS410
Power SourceElectric
I ClassB.E.F
MaterialCast Iron

Being a customer oriented organization, we are deeply engaged in offering a wide array of Cooling Tower Motor.

Specifications:
  • Concept: These motors are especially designed for cooling tower Fans for continues running in humidity area.
  • Range: Our cooling tower motor range 0.25 to 10 hp. Frame 71 to 160L.
  • Motors are flange mounting with IP-55 Degree of protection. Supply 415(+- 5%) voltage and frequency 50Hz. (+-3%) combined +-5%. Motor available in 4, 6, 8, 10 and 12 pole. On customer request we are also to able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.
  • Performance: Motor performance conforms to IS: 325.
  • Mounting: Mounting V1 shaft downward position Flange B-5 as per IS 2223.
  • Duty & Insulation: Insulation class “F” with constant duty (s1) Cooling tower motor design for Working S1Duty. For continues working.
  • Shaft and Bearing: Our cooling tower Motor relative humidity up to 90%.
  • Cooling tower Motor Shaft is Mead by stainless steel material AISI-410. Nut and washer are made for stainless steel AISI-202. It can make protection against corrosion. Motor shaft extended so cooling fan fitted properly.
